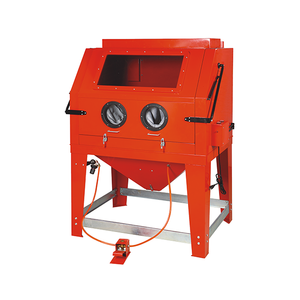

Model: DJ-SBC350E
External Dimensions (approx.): Width 1000mm x Depth 850mm x Height 1600mm
Internal Working Space (approx.): Width 900mm x Depth 700mm x Height 650mm (sufficient for small to medium-sized components)
Door Design: Single front-opening or double-door configuration with large tempered glass viewing window and safety door lock.
Glovebox Interface: Standard with 2 heavy-duty wear-resistant rubber gloves and cuffs.
Lighting System: Built-in waterproof and dustproof LED light strips providing ample illumination.
Dust Collection System:
Type: Pulse-jet self-cleaning cartridge dust collector.
Motor Power: Typically 2.2kW - 3.7kW (depending on configuration).
Filtration Efficiency: Captures most micron-sized dust particles, maintaining clear visibility and protecting the vacuum pump.
Abrasive Recovery: Bottom hopper design with airflow recovery system.
Required Air Pressure: Recommended 6-8 bar (90-120 PSI).
Air Consumption: Approx. 1.5 - 2.5 m³/min, depending on spray gun nozzle size.
Power Requirements: 380V/50Hz three-phase power (for dust removal motor).
| Consideration Dimensions | DJ-SBC350E Sandblasting Cabinet Solution | Common Issues with Traditional Open-Type Sandblasting or Low-End Equipment |
| Environmental Protection and Health | Sealed negative pressure design with a built-in high-efficiency filter dust collector captures over 95% of dust within the cabinet, significantly improving the work environment and protecting operator health. | Dust leakage contaminates the workshop environment, endangers workers' respiratory health, and may violate environmental regulations |
| Operational Safety | Built-in rubber gloves, viewing window, and lighting system ensure separation between operator and material; door-controlled safety switch automatically de-energizes the sandblasting gun when the door is opened. | Operators are directly exposed to high-velocity abrasives and dust, posing safety risks, while noise is transmitted directly into the ears. |
| Material Recovery and Cost | The bottom grille design, combined with airflow, automatically separates reusable abrasives from separated dust waste, enhancing abrasive utilization and reducing consumable costs. | Abrasives mixed with dust are difficult to recover, leading to significant waste and high costs associated with continuously using new abrasives. |
| Cleaning Efficiency and Effectiveness | Equipped with a high-pressure sandblasting gun delivering powerful impact force; features built-in high-brightness LED lights and a large glass viewing window for a bright, unobstructed operational view, enabling more precise cleaning. | Low energy efficiency and slow cleaning speed; dim visibility compromises treatment results on complex workpiece surfaces. |
Durability and Maintenance | The cabinet body is constructed from sturdy steel with replaceable wear-resistant rubber liners, effectively protecting the main equipment and extending the overall service life. Maintenance is simple and economical. | The cabinet body is prone to abrasive penetration, resulting in a short service life and high repair costs. |
The DJ-SBC350E Blasting Cabinet's versatility makes it suitable for numerous industries and applications:
Machine Manufacturing & Repair: Removes rust, old paint layers, and scale from components to prepare for welding or coating.
Mold Industry: Cleans residues from injection molds, die-casting molds, and rubber molds to restore surface finish.
Automotive & Motorcycle Repair: Cleans engine parts, wheels, chassis components, frames, etc.
Surface Treatment Prep: Matting and roughening metals, glass, wood, stone, and other materials to enhance coating adhesion.
Artwork and Furniture Restoration: Removing aged coatings from antiques and metal furniture for distressing or refurbishment.
Laboratory and Small-Batch Production: Used for product development, sample preparation, and small-scale consistency processing.
Q1: What external facilities does this equipment require?
A: It primarily requires connection to a compressed air source (providing clean, dry compressed air at a recommended pressure of 6-8 bar) and industrial power supply (380V three-phase electricity to drive the dust extraction fan). The equipment should be placed on a level, solid surface with sufficient clearance at the rear for dust collector exhaust and maintenance.
Q2: What types of abrasives can be used?
A: This equipment is compatible with various dry blasting abrasives, such as brown fused alumina, glass beads, stainless steel shot, walnut shells, and plastic grit. Abrasive grit size selection depends on your required surface roughness and cleaning efficiency. Never use damp or oily abrasives to prevent system clogging.
Q3: How often should the dust filter cartridges be replaced?
A: Filter life depends on usage frequency and abrasive dust characteristics. With normal operation and maintenance (regular pulse-jet cleaning), filters typically last 6 months to 2 years. Replace when dust collection efficiency noticeably declines or fan resistance increases.
Q4: What should I do if the blasting gloves are damaged?
A: Blasting gloves are consumable parts. The glove interface on the DJ-SBC350E uses a standard design, allowing users to easily purchase compatible abrasion-resistant gloves for replacement. We also offer original equipment gloves.
Q5: What daily maintenance does the equipment require?
A: Daily maintenance primarily includes:
1. After each use, inspect and empty the lower dust collection bucket.
2. Periodically activate the dust collector's pulse-jet cleaning function to clean the filter cartridges.
3. Inspect the spray gun, nozzle, and air hose for wear and replace promptly.
4. Keep the viewing window clean to ensure clear visibility.
5. Inspect the wear-resistant lining inside the cabinet; repair or replace immediately if severely damaged.
Safety & Reliability: Fully enclosed design and high-quality components provide maximum operator protection.
Cost-Effective: Efficient abrasive recovery and dust collection systems significantly reduce long-term operating costs.
Durable: Robust steel construction and wear-resistant lining ensure stable, long-lasting performance in industrial environments.
Ready to Use: Complete standard configuration allows immediate operation upon connecting air and power, simplifying installation.
Service Support: Clear technical guidance and spare parts supply ensure worry-free after-sales service.
